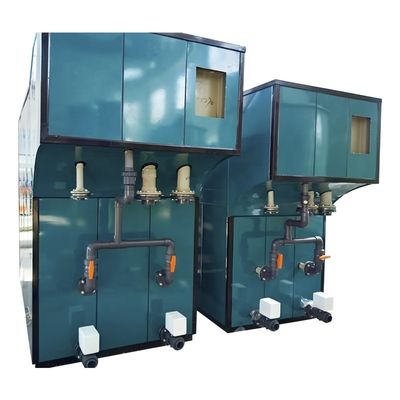

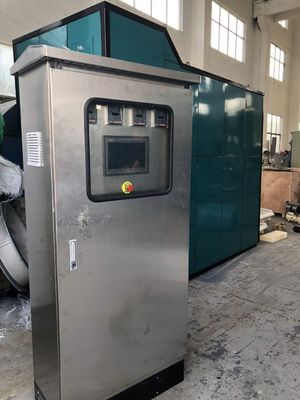

5m3/h Electrocoagulation System for Wastewater Treatment 220V-380V

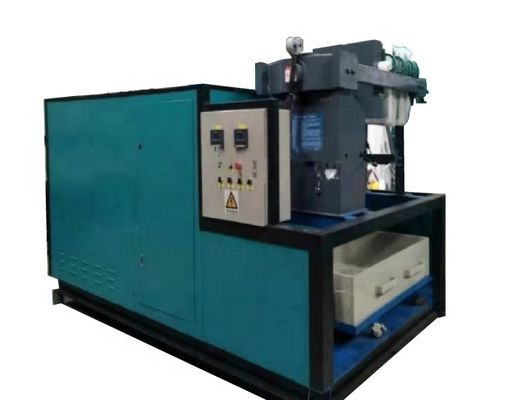

Grote Afbeelding : 5m3/h Electrocoagulation System for Wastewater Treatment 220V-380V

Productdetails:

Plaats van herkomst:	Shanghai, China
Merknaam:	ECOPRO

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	1
Prijs:	$36,897

Contact

Gedetailleerde productomschrijving

Productiviteit:	5m3/h	Gewicht:	1900 kg
Type verwerking:	Filtratie	Stroom:	1 kW
Spanning:	220 V, 380 V, 110 V	Capaciteit:	5m3/h
Gewicht van de elektrode:	1900 kg	Leeg gewicht:	1900 kg
Operatie Gewicht:	7800 kg	Kerncomponenten:	Motor
Voedingsbereik:	220V-480VAC	Anodemateriaal:	Aluminium, ijzer
Oxidatiefunctie:	Nieuwgevormde zuurstof [O]	Reductiefunctie:	opkomende waterstof [H]
Automatische besturing:	Ja
Markeren:	5m3/h electrocoagulation wastewater treatment system , electrocoagulation system 220V-380V , industrial wastewater electrocoagulation system

Electrical Coagulation System Electrocoagulation Air Flotation Wastewater Treatment Equipment

Electrocoagulation Machine Electrocoagulation Tanks Electrocoagulation Water Treatment
Electrocoagulation system is a wastewater treatment process that utilizes a metal hydroxide produced by a soluble metal anode during flocculation to remove contaminants from water. The anode material typically uses aluminum, iron and other readily available and inexpensive metals.

Electrocoagulation System Fabricate Process

Electrocoagulation System Work Process

Electrocoagulation System Principle

Electrochemical reaction: Fe->Fe2++2e
Anodizing reaction: 2OH-->2[O]+2e->02+2e, The nascent oxygen [O] has the same strong oxidation function as UV, H2O2 and O3.
Cathode reduction: 2H++2e->2[H]->H2, nascent hydrogen can break bonds, COD, chromophore functional groups and multi-chain health.
The above oxidation and reduction functions occur continuously on the plates.

Electrocoagulation System Features

Wide adaptability of power supply: 220V-480VAC range is available
Safe and convenient: embedded isolated voltage circuit to ensure electrical safety; various abnormal indications and protection (phase loss, overload, overcurrent, overvoltage, zero voltage, etc.)
Automatic control: can automatically detect the ion state in the water to adjust the current and voltage
Energy saving: Fe(OH)2 and Fe(OH)3 are excellent coagulants. No need for polymer is a major feature of this equipment

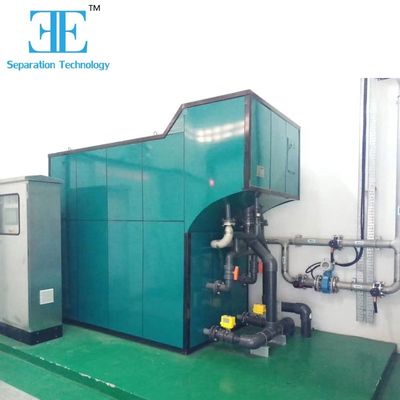

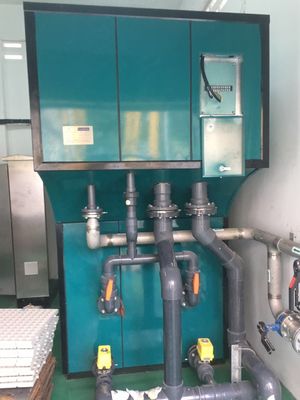

Electrical Flocculation System Work Site for Reference
